Testing components

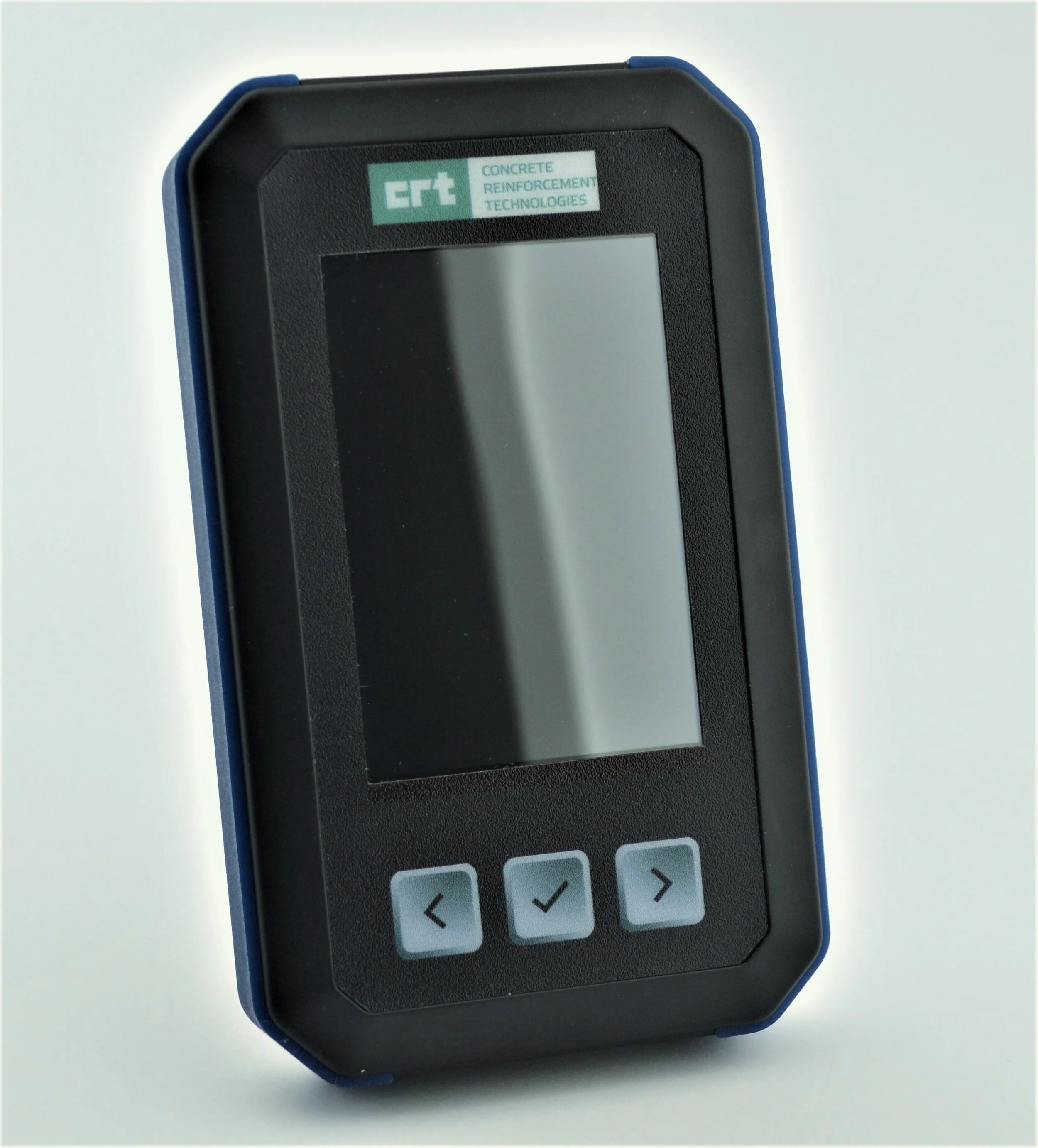

Fielder is a device made specifically for cathodic protection. It can be paired with a lot of different cathodic protection measurement probes and devices. Fielder can be used to:

Monitor and adjust cathodic protection systems (installed by CRT) Fielder-DB;

Measure and log potential measurement data Fielder-PM;

Measure and log potential and temperature/humidity data Fielder-PMM;

Fielder has micro-USB port for charging and firmware upgrades, slot for micro SD card-data logging, power button and three function buttons.

Continuity meter is designed for measuring continuity between rebars in a structure. It uses high current signal to test resistance between rebars. Device has high capacity battery and can be used while charging which ensures that it can be used 24/7.

Every cathodic protection system installation has to have polarization tests done to ensure that the finished installation/repair will work as desired. This device will allow the user to quickly and simply make those measurements. Device has integrated power supply unit to simulate power rectifier in permanent installation and clones of “PowerSense 4” devices to ensure most accurate measurement of 6 reference electrodes. All data is processed and displayed in two 4.3 inch touchscreen displays with number values and graphs, data is then stored in the SD card for further analysis. Three of six electrodes can be away from testing device thanks to wireless technology of the devices, WiNode device is placed back in the main Polarizer device it will charge wirelessly.
