Electronic components

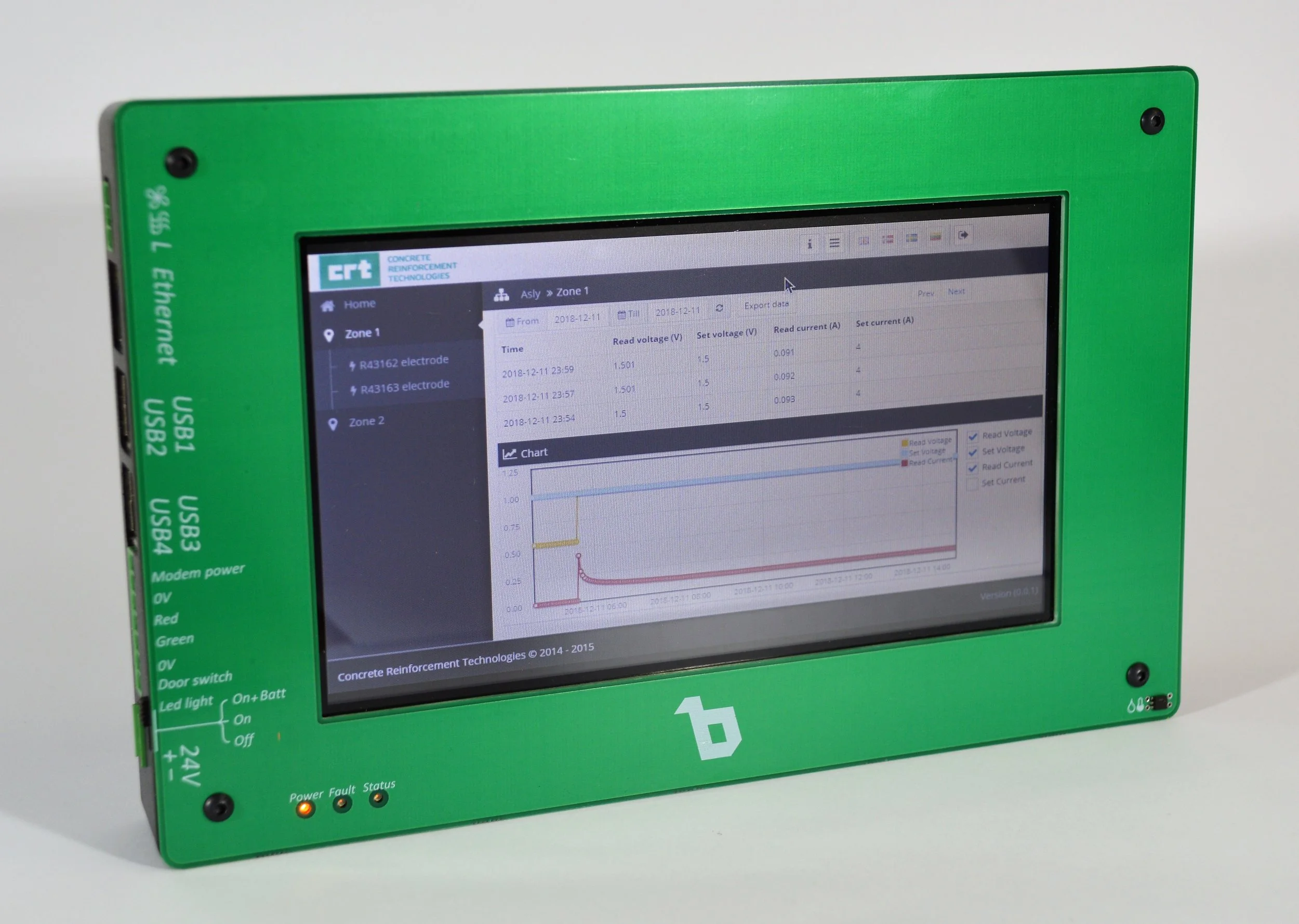

MainHead Plus provides simple control and monitoring using integrated touchscreen. It has internal battery for stable power delivery which ensures that no data will be lost during power outages. Device also supports USB (for communication and storage), ethernet, WiFi, etc.

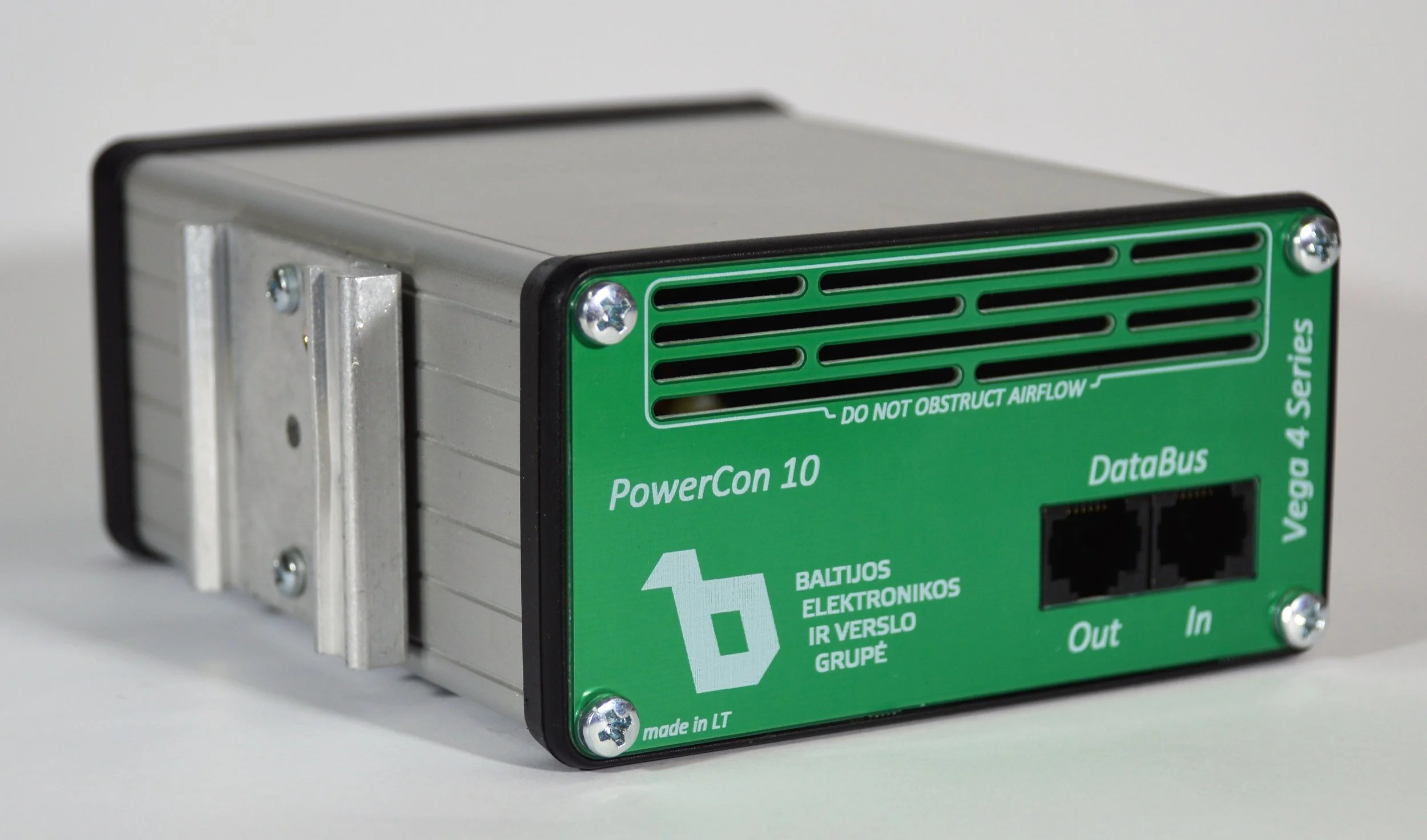

PowerCon 10 provides power for cathodic protection zones that need large amounts of power with accurate monitoring. Device has smart micro-controller for data collection, control and fault prevention. PowerCon 10 power supply has non-volatile memory which ensures correct settings even if the power or data connection was lost.

FlipMod Plus provides power and isolated data connection for PowerSense units used in cathodic protection system. Device has on board indication of data and power signals for easy diagnostics.

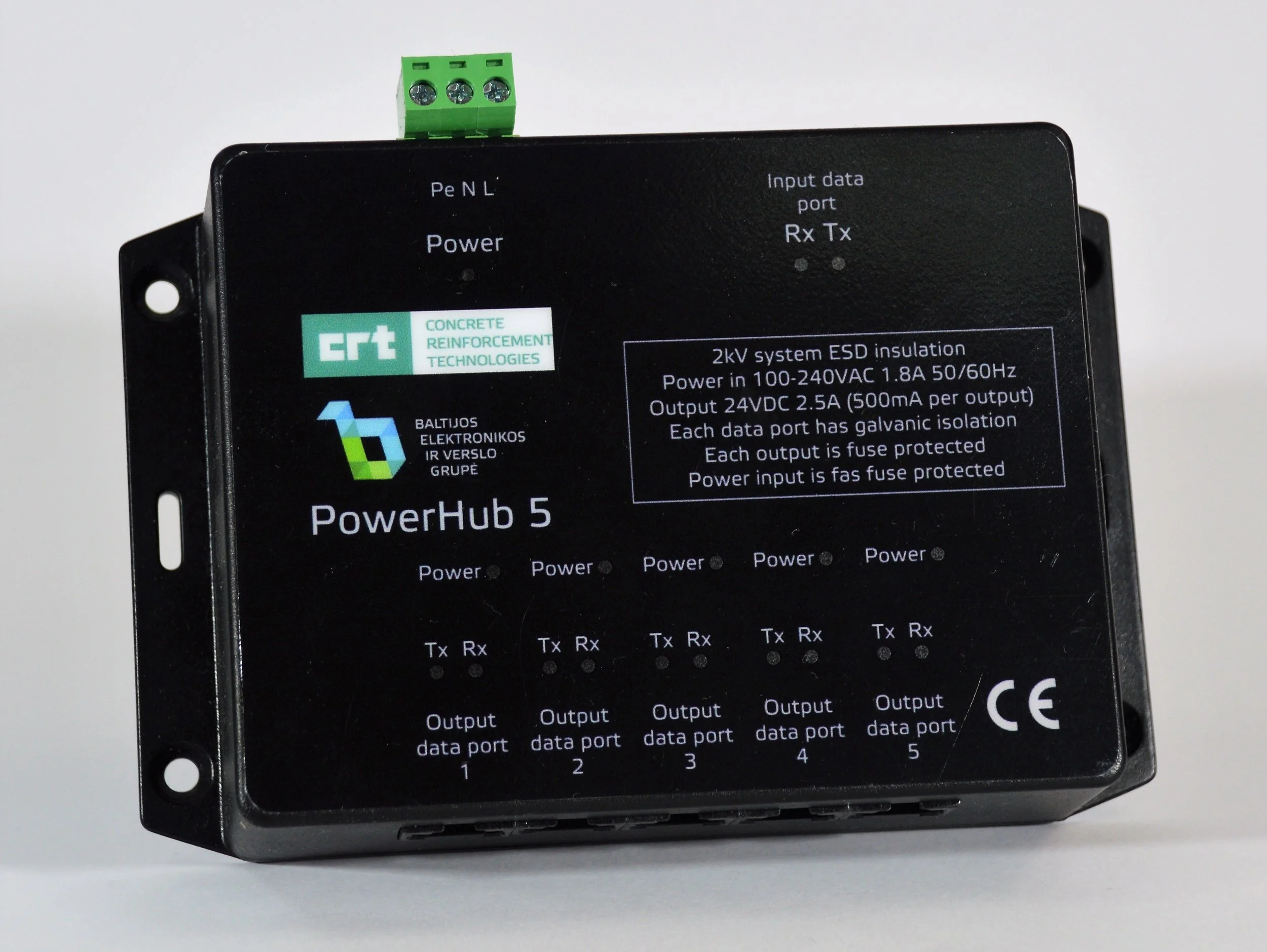

PowerHub 5 provides power and isolated data connection for PowerDot 1 units used in cathodic protection system. Device has on board indication of each data and power signals for easy diagnostics.

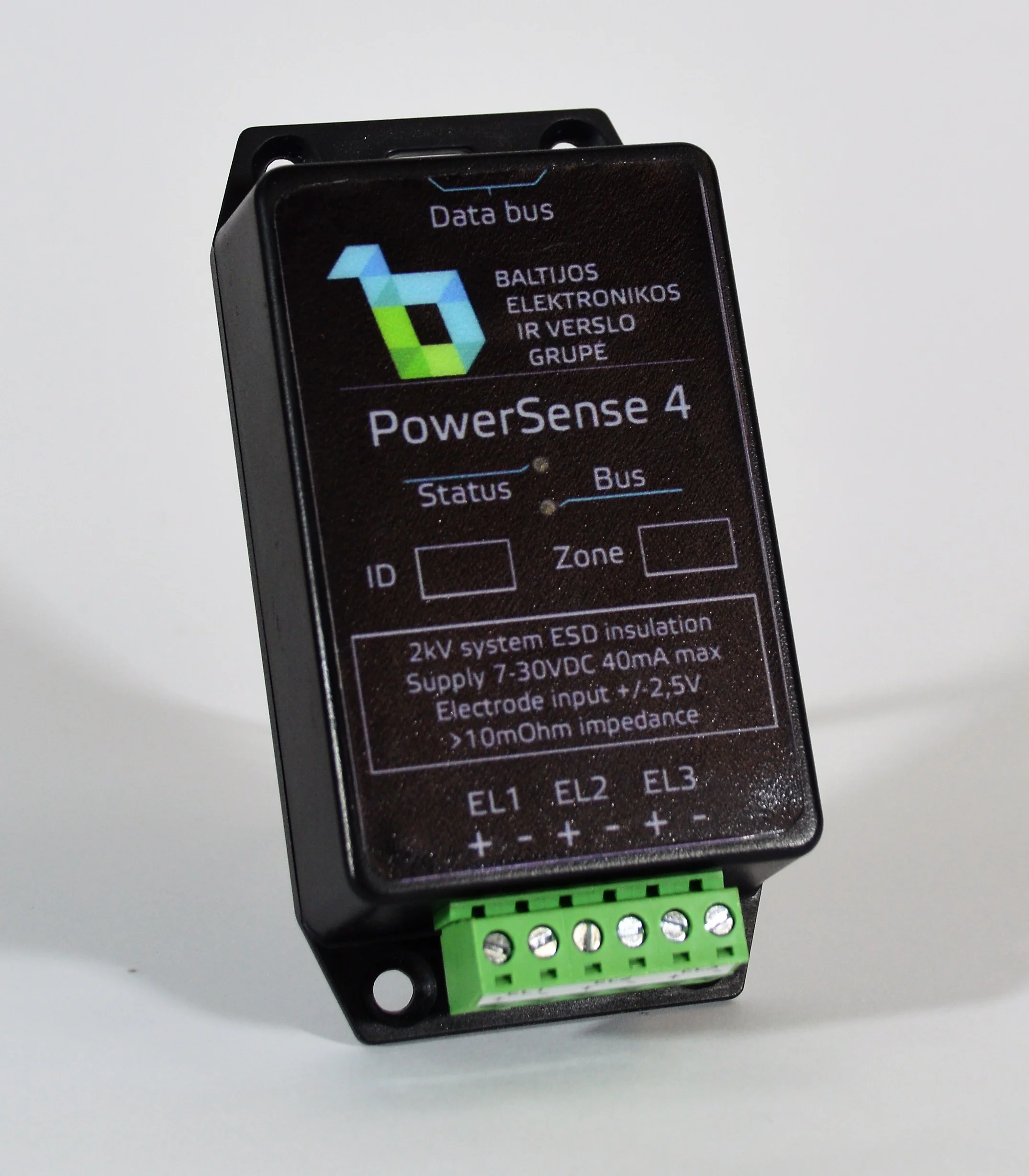

PowerSense 4 provides monitoring of up to 3 reference electrodes, temperature, temperature/humidity sensors. Device uses industry standard connectors. Multiple devices can be daisy-chained for easy installation.

PowerDot 1 provides power for very small areas of cathodic protection (balcony, column, etc.). Device should be powered from PowerHub 5 unit or the main cathodic protection cabinet. It also supports 1 reference electrode, temperature, temperature/humidity sensors.

PowerCell 5 provides power and monitoring for stand-alone or network based cathodic protection systems. Device has most of PowerCon 10 features, also additional user interface for local settings and monitoring. It support optional expansion for sensors, communications, etc. compatibility.

Vega 4 series system is the latest solution for cathodic protection from CRT. It provides full monitoring, control and great scalability for any cathodic protection systems.
